Product Details

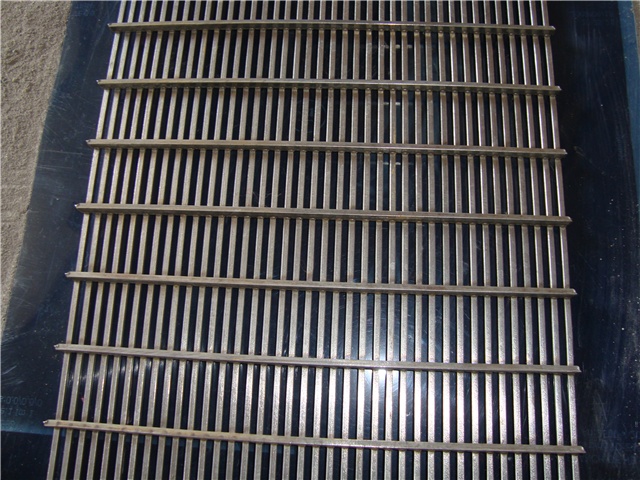

Mine sieving mesh is one kind of metal filter screen for the structural elements. The mine sieving mesh is widely used in industries of filtration, dehydration, desliming. It has capacity of very high strength, stiffness and load-carrying, can be molded into any shape of rigid sieving mesh devices.

Material:302, 304, 304L, 316, 316L, low carbon steel wire, galvanized iron wire, etc.

The Support wire:Square rod, "V" shape wire, Convex shape wire.

Gap:0.5mm-20mm

Wedge wire:1.5m x 2.0mm/ 2.0mm x 2.5mm

Support wire:2.0m x 3.0mm/ 3.0mm x 3.5mm

Support distance:18mm-75mm

Performance:Mine sieving mesh is strong to be acid-proof, alkali-resisting, is able to bear high temperature, pulling force and wearability.

Application:mine, coal, oil, fertilizer, grain, oil filter, salt. Petroleum industry, chemical fiber industry. It is able to be used in the environmental condition of acid and alkali.

Weave Method:The plain weave and twill weave.

Variety:Stainless steel welded mine sieving mesh, Plane sieve plate, Arc sieve plate, Sieve Basket, Welded Vibration Screen, Cylinder mine sieving mesh, High strength mine sieving mesh.
